In today’s interconnected world, establishing reliable communication between devices is paramount, especially when interfacing modern computers with legacy systems or microcontrollers. A crucial tool facilitating this interaction is the Isolated USB Type-C to TTL Converter Board by Smart Samaan. This tutorial delves into the features, benefits, and practical applications of this converter, guiding you through its setup and usage.
Understanding the Isolated USB Type-C to TTL Converter

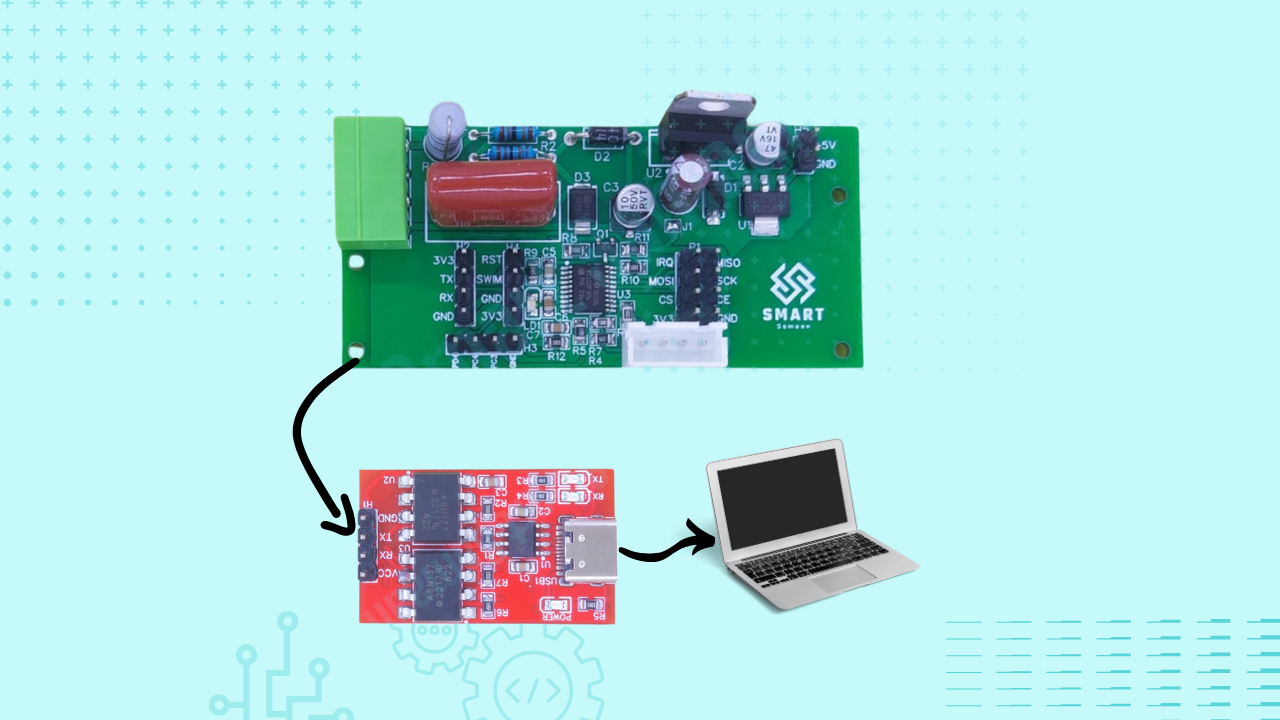

The Isolated USB Type-C to TTL Converter is designed to bridge USB interfaces with TTL (Transistor-Transistor Logic) serial communication. Equipped with the high-performance optocoupler 6N137 and CH340N, it ensures fast and reliable data transmission while providing complete electrical isolation. This isolation safeguards both your PC and connected devices from potential electrical damage.
Key Features:
Electrical Isolation: Protects your computer and connected devices from voltage spikes and ground loops. High-Speed Communication: The 6N137 optocoupler facilitates rapid data transfer, ensuring efficient communication. External Power Supply: Requires an external power source of 3.3V to 5V, enhancing performance across various testing conditions. Compact Design: Its sleek and durable construction makes it a versatile tool for tech enthusiasts and professionals alike.
Why an Isolated Converter is Necessary?
Standard USB to TTL converters often lack electrical isolation, making connected devices susceptible to ground loops, voltage spikes, and other electrical interferences. An isolated converter, like the one from Smart Samaan, mitigates these risks by providing a barrier between the computer and the connected device, ensuring data integrity and equipment safety.
Setting Up the Converter
Materials Needed:
- Isolated USB Type-C to TTL Converter Board
- USB Type-C cable
- External power supply (3.3V to 5V)
- Connecting wires
- Device to interface (e.g., microcontroller, serial device)
Practical Applications
The Isolated USB to TTL Converter is versatile and can be used in various scenarios:
- Microcontroller Programming: Interface with microcontrollers like Arduino, STM8, or STM32 for programming and debugging purposes.
- Serial Device Communication: Connect and communicate with serial devices such as GPS modules, sensors, or Bluetooth modules.
- Data Logging: Collect data from sensors or other serial devices and transmit it to a computer for analysis.
Conclusion
Incorporating the Isolated USB Type-C to TTL Converter from Smart Samaan into your projects ensures safe and efficient communication between your computer and various serial devices. Its electrical isolation feature provides an added layer of protection, making it an invaluable tool for both hobbyists and professionals.
